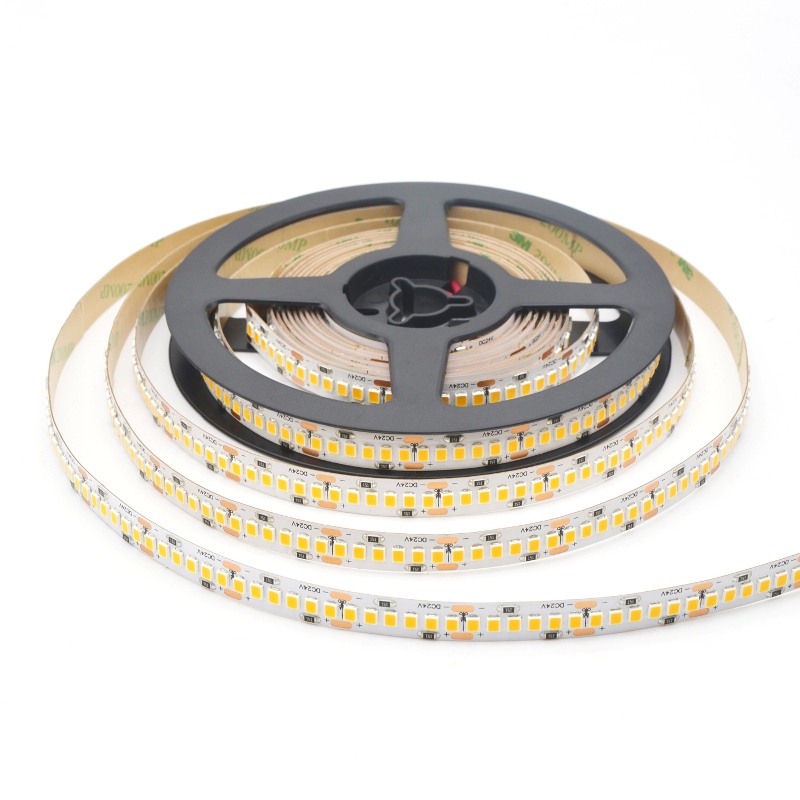

SMD2835 LED Flexible Strip 240LEDs

LED Type: SMD2835

LED Qty per meter: 30/60/120/144/268/240pcs

Color Temperature: WW/NW/CW

Working Voltage: DC12V/24V



1. SMD3528、2835、5050、5630、3014、335、3030、3020 LED as lighting sources.

2. Flexible PCB, can be bent to any shape.

3. Working voltage: DC12V/24V, low voltage for human safety.

4. Cuttable length: by every 3LEDs or 6LEDs

5. Waterproof level IP20, IP54, IP67, IP68 for option

6. Energy saving and environmental friendly,

7. Working temperature and Storage temperature: -20℃ - 60℃.

8. Environment humidity:40-70% RH

9. Easy Installation: With 3M double-sided adhesive on the back, ultra-thin design

10. Working Lifetime (Hour): 50000

11. Packing: 5meters per reel were packed in an anti-static PVC bag.


Speicification:

                                                      SMD2835 LED Flexible Strip series

Part No.

LED Qty/M (pcs)

Voltage

Power/M

FPC Width (mm)

Luminous flux/LED

Wavelength/ color temperature

FS2835Q30

30

DC12/24V

6W

8

W: 22~24lm

WW: 22~24lm

W: 4000~10000K

WW: 2100~3200K

FS2835Q60

60

DC12/24V

12W

8/10

FS2835Q120

120

DC12/24V

19.2W

5/10

FS2835Q144

144

DC24V

28.8W

15

FS2835Q168

168

DC24V

30W

20

FS2835Q240

240

DC24V

24W

10


1.  Please make sure LED drivers compatible with flexible LED strips light before use LED strips;
2.  To use LED strips no exceed 5meters in serial, longer than 5meters in parallel;
3.  Before use, first check the power supply used in compliance with of the power requirements;
4.  Each roll LED strips ask for independent power supply; not to use of multi-volume series use;
5.  Installation surface must be smooth, clean and dry.
