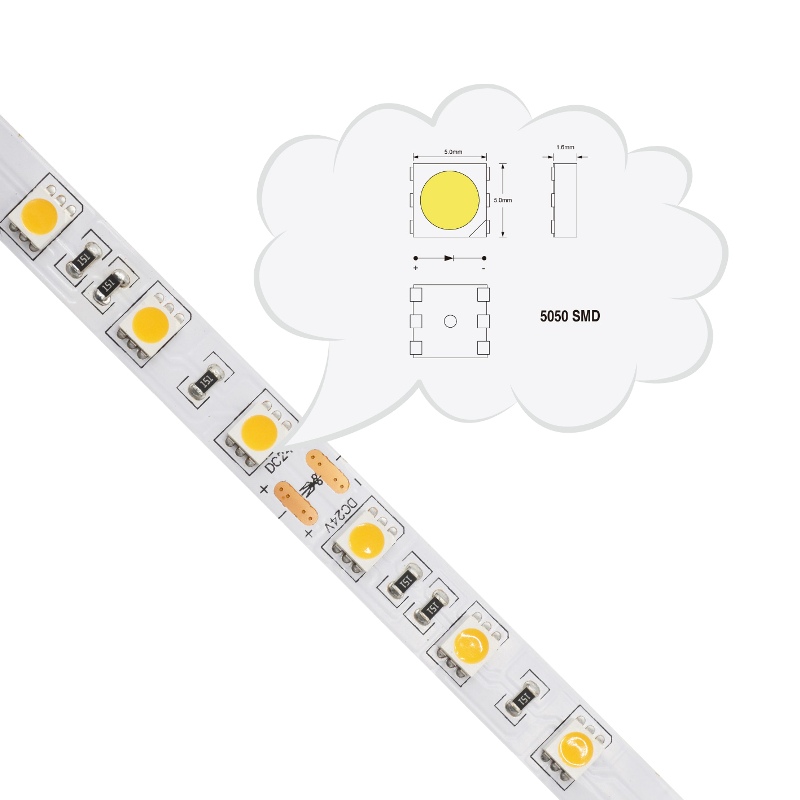

SMD5050 LED Flexible Strip

LED Type: SMD5050

LED Qty per meter: 30/48/60/96/120

Color Temperature: WW/NW/CW/R/Y/B/G/RGB

Working Voltage: DC12V/24V



1. SMD3528、2835、5050、5630、3014、335、3030、3020 LED as lighting sources.

2. Flexible PCB, can be bent to any shape.

3. Working voltage: DC12V/24V, low voltage for human safety.

4. Cuttable length: by every 3LEDs or 6LEDs

5. Waterproof level IP20, IP54, IP67, IP68 for option

6. Energy saving and environmental friendly,

7. Working temperature and Storage temperature: -20℃ - 60℃.

8. Environment humidity:40-70% RH

9. Easy Installation: With 3M double-sided adhesive on the back, ultra-thin design

10. Working Lifetime (Hour): 50000

11. Packing: 5meters per reel were packed in an anti-static PVC bag.


Speicification:


                                                 SMD5050 LED Flexible Strip series

Part No.

LED Qty/M (pcs)

Voltage

Power/M

FPC Width (mm)

Luminous flux/LED

Wavelength/ color temperature

FS5050Q30

30

DC12/24V

7.2W

10

R: 5~9lm

Y: 5~9lm

B: 5~9lm

G: 12~15lm

W: 20~22lm

WW: 20~22lm

RGB: 10-12lm

R: 620~630nm

Y: 580~590nm

B: 465~470nm

G: 520~525nm

W: 4000~10000K

WW: 2100~3200K

FS5050Q48

48

DC12V

11.5W

10

FS5050Q60

60

DC12V

14.4W

8

FS5050Q60

60

DC12/24V

14.4W

10

FS5050Q60

60

DC24V

14.4W

12

FS5050Q96

96

DC24V

23W

12

FS5050Q120

120

DC24V

28.8W

15/20


1.  Please make sure LED drivers compatible with flexible LED strips light before use LED strips;
2.  To use LED strips no exceed 5meters in serial, longer than 5meters in parallel;
3.  Before use, first check the power supply used in compliance with of the power requirements;
4.  Each roll LED strips ask for independent power supply; not to use of multi-volume series use;
5.  Installation surface must be smooth, clean and dry.
1. Decorative lighting for exhibition shelves, advertising light box and hotel etc;
2. Backlight for edge lighting/signage;
3. Holiday decorative lights, residential and outdoor lighting;
4. Bridge, garden, road and car lighting etc;
5. Long-distance project but with inconvenient wiring;
