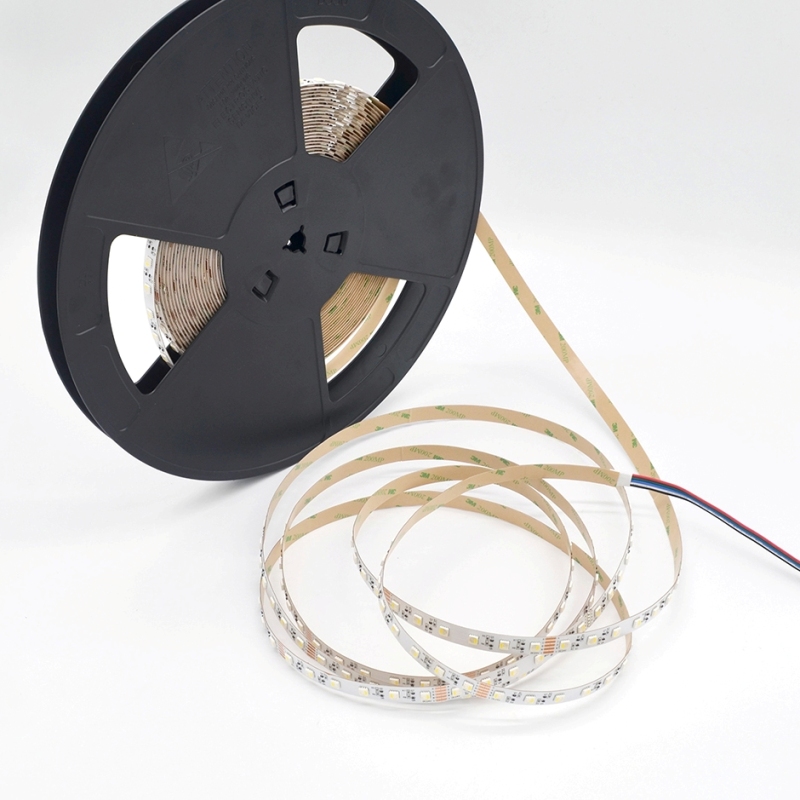

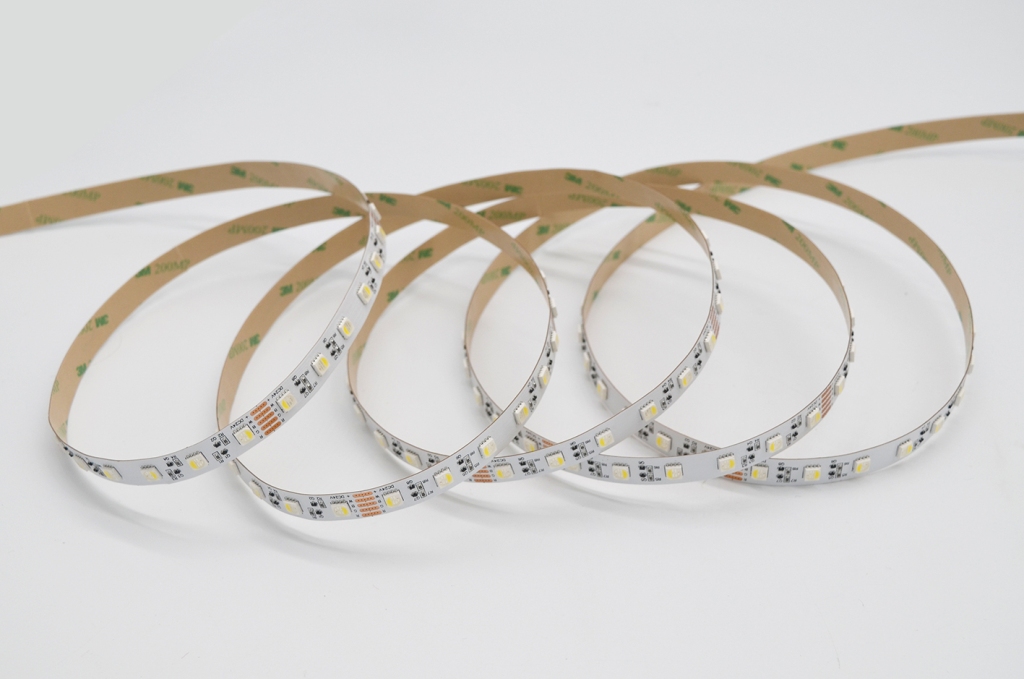

15Meters RGBW Super Long Constant Current LED Flexible StripLED Type: SMD5050/2835/3528

LED Qty per meter: 60/90/120pcs

Color Temperature: WW/NW/RGB/RGBW

Working Voltage: DC24V/36V

Length: 10M/15M/20M/30M

Details Attention Application

1. SMD3528、2835、5050 LED as lighting sources.

2. Emitting color: warm white, pure white, cool white, RGB, RGBW etc.

3. Flexible PCB, can be bent to any shape.

4. Long length up to 30meters per meter.

5. High CRI, more than 90Ra.

6. Constant current type, no voltage drop.

7. Working voltage: DC24/36V, low voltage for human safety.

8. Strip can be cut-table easily.

9. Waterproof level IP20, IP65, IP67, IP68 for option.

10. Energy saving and environmental friendly.

11. Working temperature and Storage temperature: -20℃ - 60℃.

12. Environment humidity:40-70% RH.

13. Easy Installation: With 3M double-sided adhesive on the back, ultra-thin design.

14. Working Lifetime (Hour): 50000.

15. Packing: 15meters per reel were packed in an anti-static PVC bag.

Specification

Super long constant current LED Flexible Strip Series

Part No.	LED Qty/M (pcs)	Voltage	Power/M	FPC Width (mm)	LED Type	Color temperature	Meters/roll	Luminous flux/LED
FS5050SCCQ60	60	DC24V	12W	10	5050	CW/PW/WW	10	960/910/830lm(±10%)
FS2835SCCQ60	60	DC24V	12.5W	10	2835	CW/PW/WW	10	927/918/840lm(±10%)
FS2835SCCQ60	60	DC24V	10.4W	10		CW/PW/WW	15	900/830/780lm(±10%)
FS2835SCCQ60	60	DC24V	8.5W	12		CW/PW/WW	20	780/710/670lm(±10%)
FS2835SCCQ90	90	DC36V	7.2W	12		CW/PW/WW	30	720/690/660lm(±10%)
FS2835SCCQ120	120	DC24V	12W	12		CW/PW/WW	15	572/558/520lm(±10%)
FS3528SCCQ90	90	DC36V	7.2W	12	3528	CW/PW/WW	30	468/450/423lm(±10%)
FS5050SCCQ60	60	DC24V	11W	12	5050	RGB	15	380lm(±10%)
FS5050SCCQ60	60	DC24V	14.4W	12	5050	RGBW	15	546lm(±10%)

1. Please make sure LED drivers compatible with flexible LED strips light before use LED strips;
2. Before use, first check the power supply used in compliance with of the power requirements;
3. Each roll LED strips ask for independent power supply; not to use of multi-volume series use;
4. Installation surface must be smooth, clean and dry.

1. Decorative lighting for exhibition shelves, advertising light box and hotel etc;
2. Backlight for edge lighting/signage;
3. Holiday decorative lights, residential and outdoor lighting;
4. Bridge, garden, road and car lighting etc;
5. Long-distance project but with inconvenient wiring;
