LED Qty per meter: 60/84/120/156
Color Temperature: WW/NW/CW/RGB
Working Voltage: DC12V/24V
1. SMD3528、2835、5050、5630、3014、335、3030、3020 LED as lighting sources.
2. Flexible PCB, can be bent to any shape.
3. Working voltage: DC12V/24V, low voltage for human safety.
4. Cuttable length: by every 3LEDs or 6LEDs
5. Waterproof level IP20, IP54, IP67, IP68 for option
6. Energy saving and environmental friendly,
7. Working temperature and Storage temperature: -20℃ - 60℃.
8. Environment humidity:40-70% RH
9. Easy Installation: With 3M double-sided adhesive on the back, ultra-thin design
10. Working Lifetime (Hour): 50000
11. Packing: 5meters per reel were packed in an anti-static PVC bag.

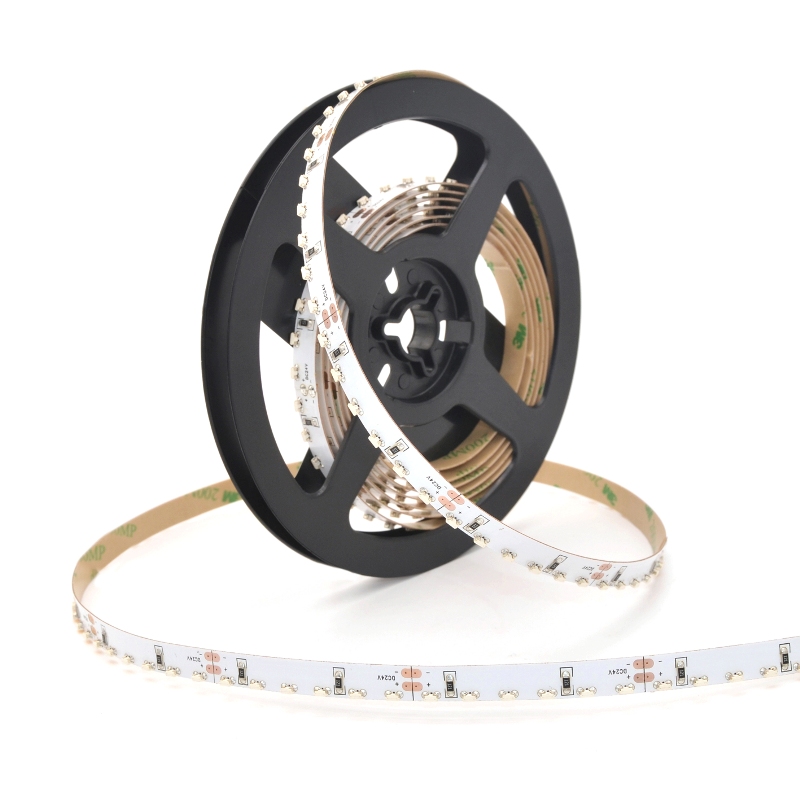

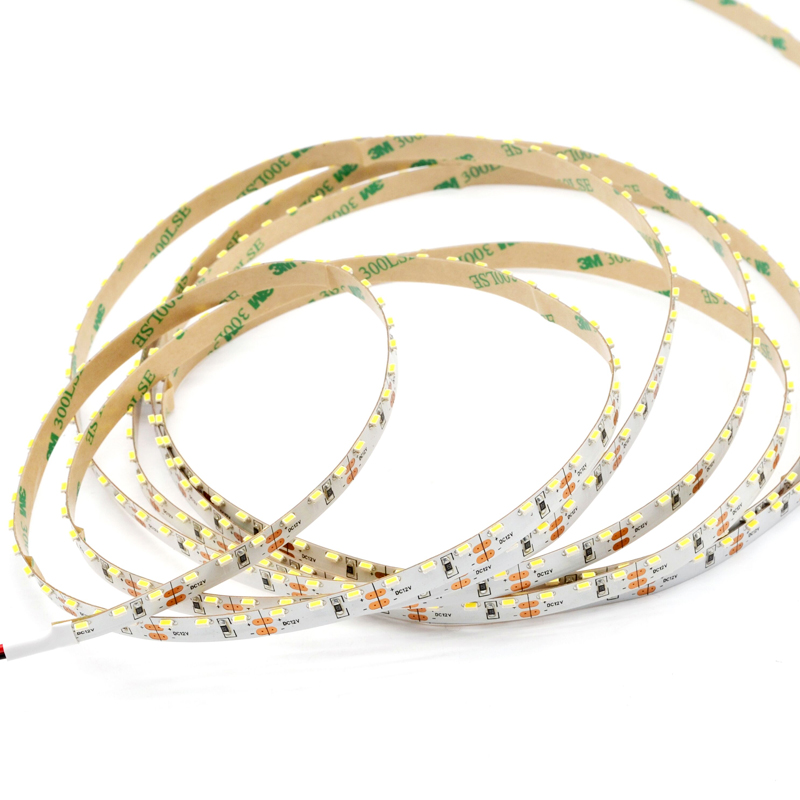

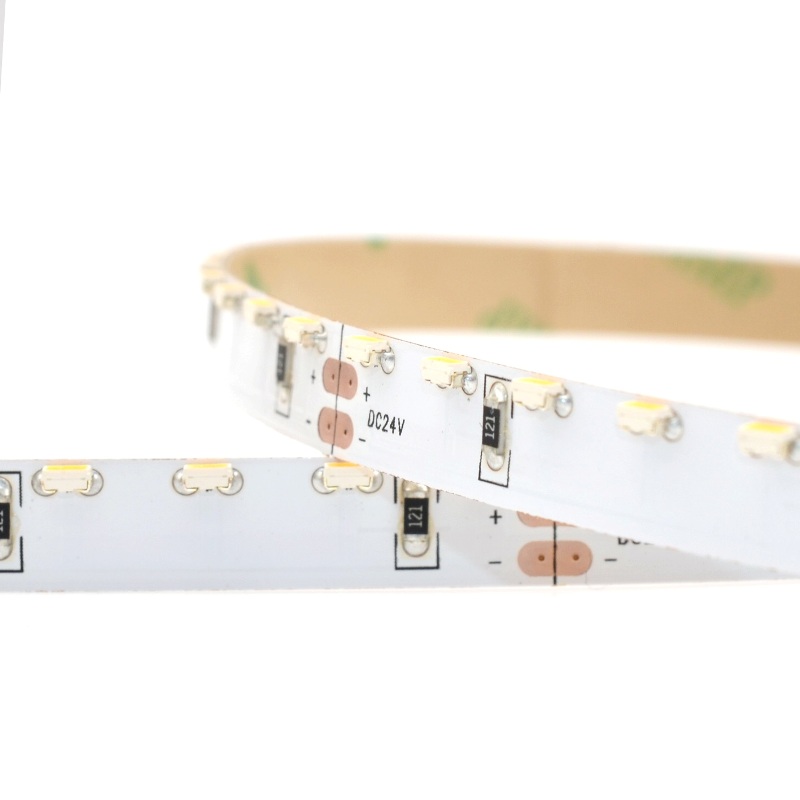

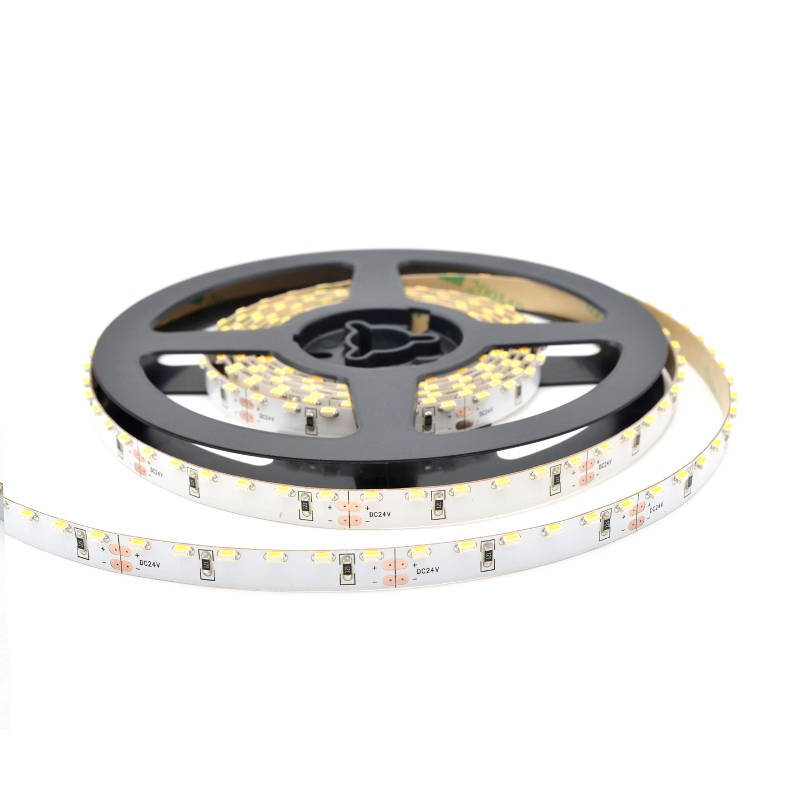

Sideview Series LED Flexible Strip
|LED Qty/M (pcs)||Voltage||Power/M||FPC Width (mm)||Wavelength/color temperature||Luminous flux/LED|
1. Please make sure LED drivers compatible with flexible LED strips light before use LED strips;
2. To use LED strips no exceed 5meters in serial, longer than 5meters in parallel;
3. Before use, first check the power supply used in compliance with of the power requirements;
4. Each roll LED strips ask for independent power supply; not to use of multi-volume series use;
5. Installation surface must be smooth, clean and dry.
1. Decorative lighting for exhibition shelves, advertising light box and hotel etc;
2. Backlight for edge lighting/signage;
3. Holiday decorative lights, residential and outdoor lighting;
4. Bridge, garden, road and car lighting etc;
5. Long-distance project but with inconvenient wiring;
