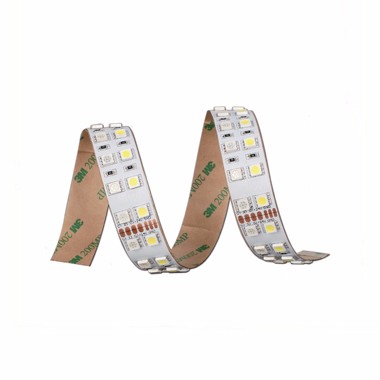

RGB+W LED Flexible Strip


LED Type: SMD5050/SMD5050+SMD3528 optioinal

LED Qty per meter: 60/72/84/96/120/144/240pcs optional

Color Temperature: RGB+W/RGB+WW

Working Voltage: DC12V/24V




1. SMD3528、2835、5050、5630、3014、335、3030、3020 LED as lighting sources.

2. Flexible PCB, can be bent to any shape.

3. Working voltage: DC12V/24V, low voltage for human safety.

4. Cuttable length: by every 3LEDs or 6LEDs

5. Waterproof level IP20, IP54, IP67, IP68 for option

6. Energy saving and environmental friendly,

7. Working temperature and Storage temperature: -20℃ - 60℃.

8. Environment humidity:40-70% RH

9. Easy Installation: With 3M double-sided adhesive on the back, ultra-thin design

10. Working Lifetime (Hour): 50000

11. Packing: 5meters per reel were packed in an anti-static PVC bag.


Speicification:


                                                         RGB+W LED Flexible Strip Series

Part No.

LED Qty/M (pcs)

Voltage

Power/M

FPC Width (mm)

LED Type

Luminous flux/LED

FSRGBWQ60-S

60

DC12/24V

14.4W

10

5050

W: 20-22lm

WW: 20-22lm

RGB: 10-12lm

FSRGBWQ72-S

72

DC12V

17.2W

12

FSRGBWQ96-S

96

DC12V

23W

12

FSRGBWQ120-S

120

DC12V

28.8W

20

FSRGBWQ144-S

144

DC24V

34.4W

20

FSRGBWQ60-4

60

DC12/24V

19.2W

12

5050RGBW

FSRGBWQ72-4

72

DC24V

23W

12

FSRGBWQ84-4

84

DC12/24V

26.8W

12

FSRGBWQ96-4

96

DC24V

30.7W

12

FSRGBWQ72-5

72

DC24V

23W

12

5050RGB +WWW

FSRGBWQ120-53

120

DC24V

19.2W

15

5050RGB +3528W

W: 6-7lm WW: 6-7lm R/G/B: 1-4lm

FSRGBWQ240-53

240

DC24V

19.2W

15


1. Please make sure LED drivers compatible with flexible LED strips light before use LED strips;

2. To use LED strips no exceed 5meters in serial, longer than 5meters in parallel;

3. Before use, first check the power supply used in compliance with of the power requirements;

4. Each roll LED strips ask for independent power supply; not to use of multi-volume series use;

5. Installation surface must be smooth, clean and dry.

1. Decorative lighting for exhibition shelves, advertising light box and hotel etc;

2. Backlight for edge lighting/signage;

3. Holiday decorative lights, residential and outdoor lighting;

4. Bridge, garden, road and car lighting etc;

5. Long-distance project but with inconvenient wiring;
