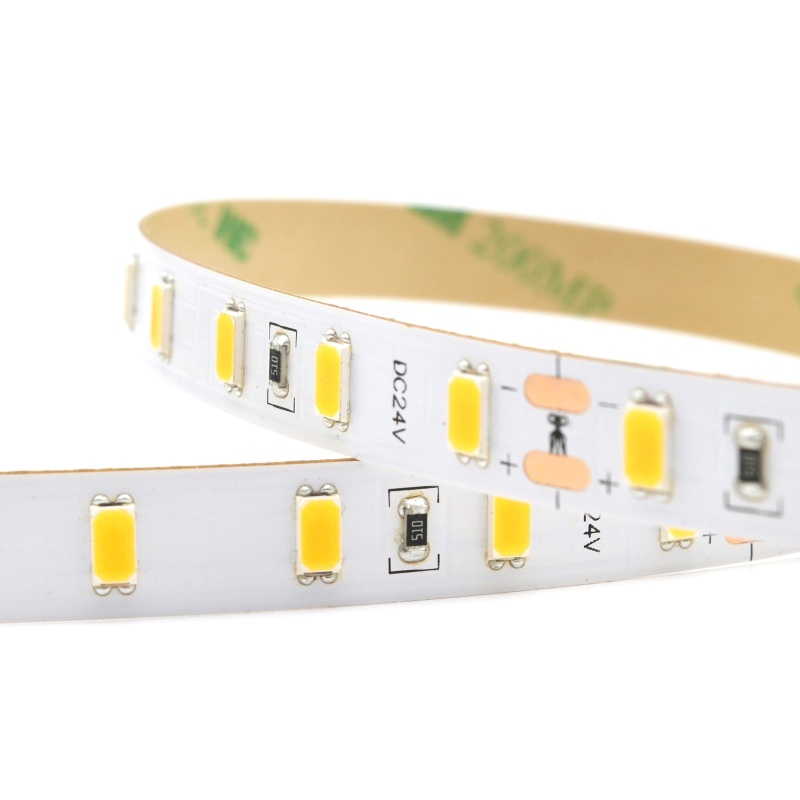

SMD5630 LED Flexible Strip 60LEDs

LED Type: SMD5630

LED Qty per meter: 30/60/72/120pcs

Color Temperature: WW/NW/CW

Working Voltage: DC12V/24V



1. SMD3528、2835、5050、5630、3014、335、3030、3020 LED as lighting sources.

2. Flexible PCB, can be bent to any shape.

3. Working voltage: DC12V/24V, low voltage for human safety.

4. Cuttable length: by every 3LEDs or 6LEDs

5. Waterproof level IP20, IP54, IP67, IP68 for option

6. Energy saving and environmental friendly,

7. Working temperature and Storage temperature: -20℃ - 60℃.

8. Environment humidity:40-70% RH

9. Easy Installation: With 3M double-sided adhesive on the back, ultra-thin design

10. Working Lifetime (Hour): 50000

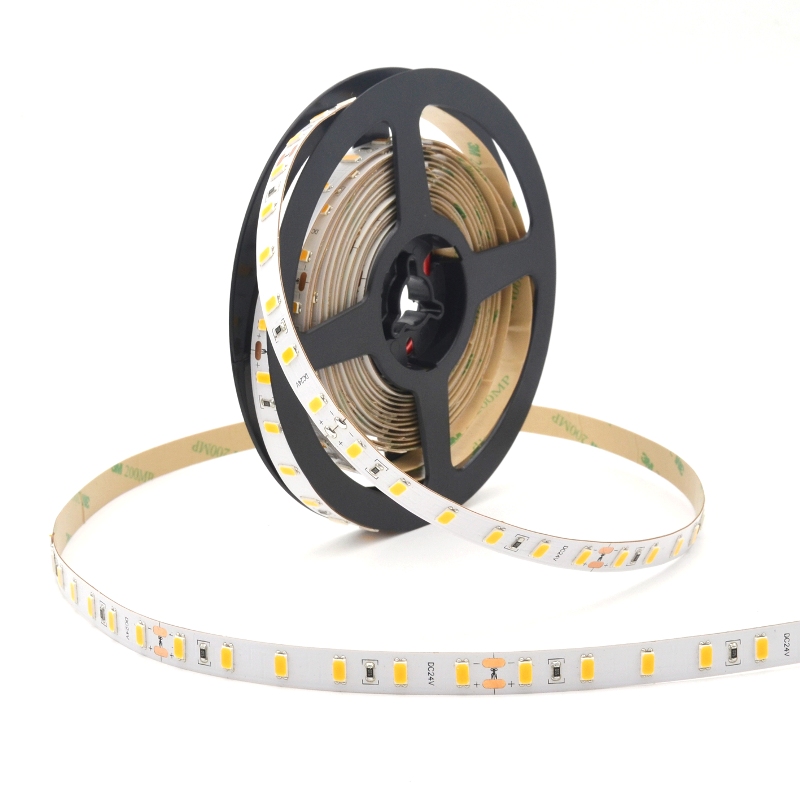

11. Packing: 5meters per reel were packed in an anti-static PVC bag.


Speicification:

                                                     SMD5630 LED Flexible Strip Series

Part No.

LED Qty/M (pcs)

Voltage

Power/M

FPC Width (mm)

Luminous flux/LED

Wavelength/ color temperature

FS5630Q30

30

DC12/24V

7.2W

10

W: 50~55lm

WW: 50~55lm

W: 4000~10000K

WW: 2100~3200K

FS5630Q60

60

DC12/24V

14.4W

10

FS5630Q60

60

DC24V

14.4W

12

FS5630Q72

72

DC24V

17.3W

10

FS5630Q120

120

DC24V

28.8W

15



1.  Please make sure LED drivers compatible with flexible LED strips light before use LED strips;

2.  To use LED strips no exceed 5meters in serial, longer than 5meters in parallel;

3.  Before use, first check the power supply used in compliance with of the power requirements;

4.  Each roll LED strips ask for independent power supply; not to use of multi-volume series use;

5.  Installation surface must be smooth, clean and dry.

1. Decorative lighting for exhibition shelves, advertising light box and hotel etc;

2. Backlight for edge lighting/signage;

3. Holiday decorative lights, residential and outdoor lighting;

4. Bridge, garden, road and car lighting etc;

5. Long-distance project but with inconvenient wiring;
