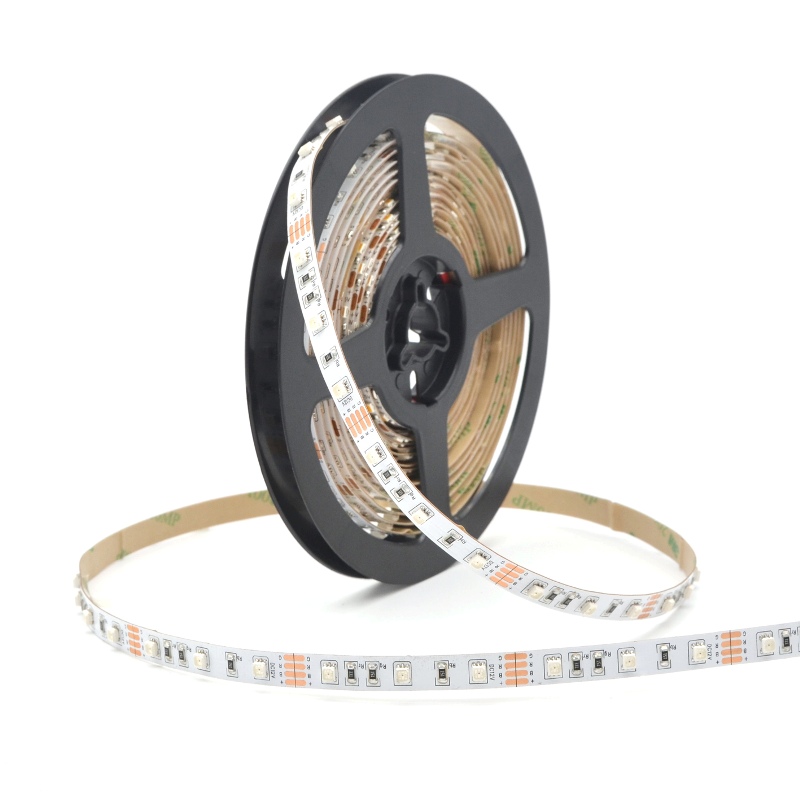

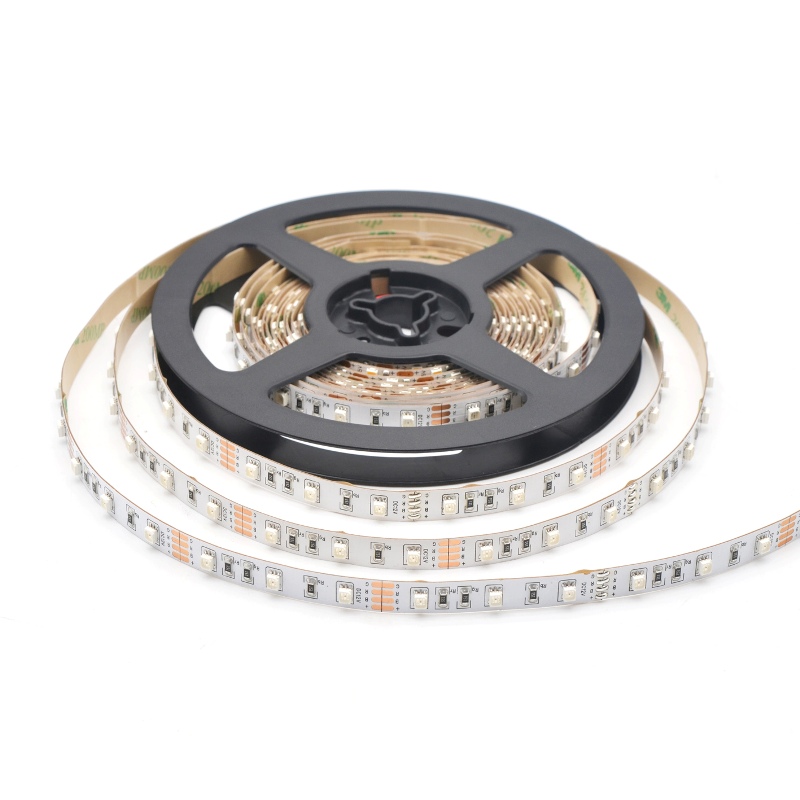

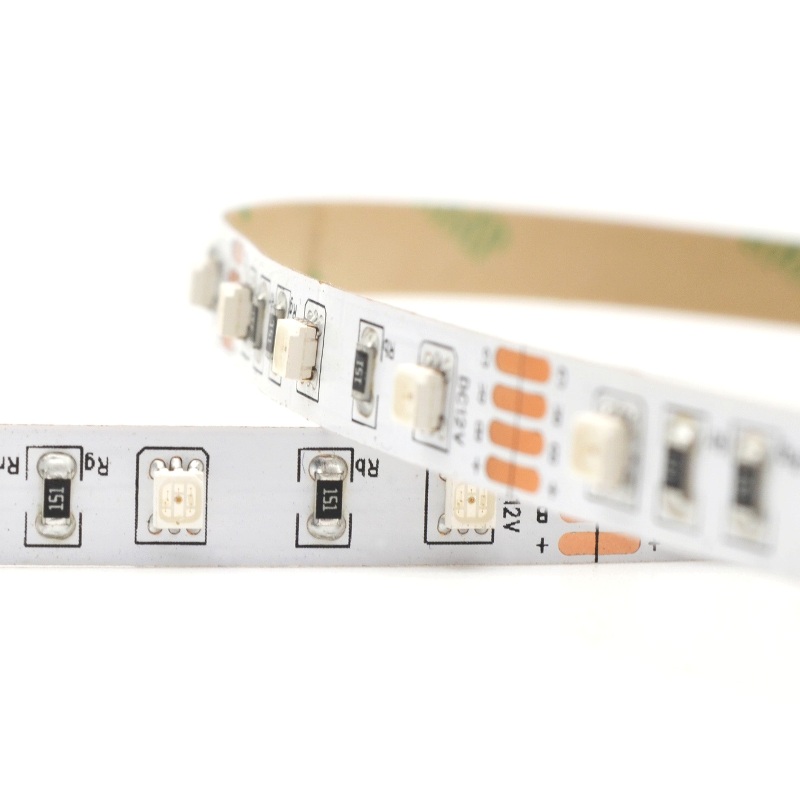

SMD3528 LED Flexible Strip RGB

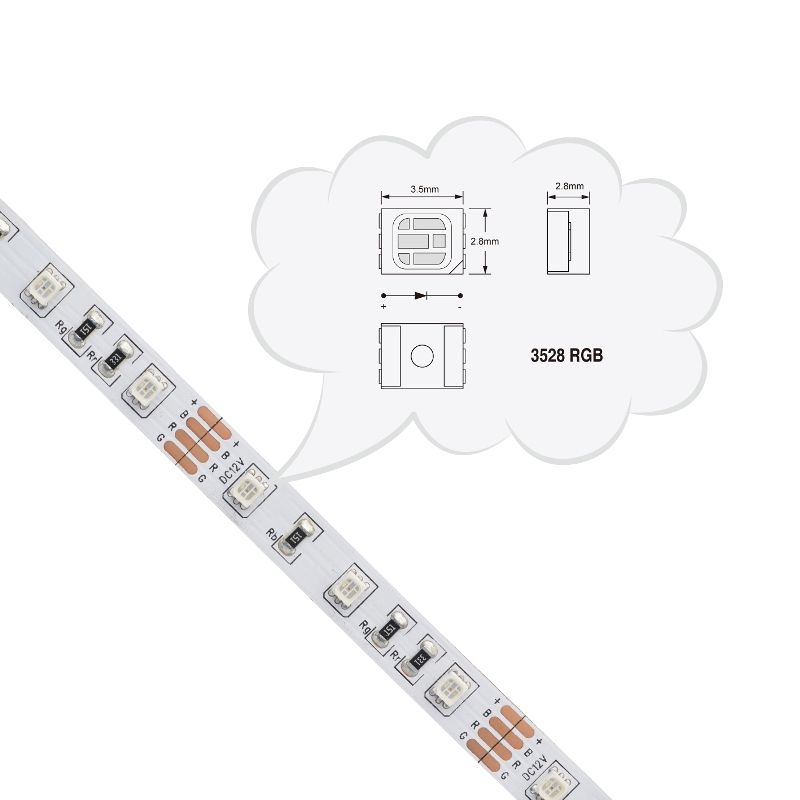

LED Type: SMD3528

LED Qty per meter: 30/48/60/96/120/180/240/360pcs

Color Temperature: R+G+B

Working Voltage: DC12V/24V



1. SMD3528、2835、5050、5630、3014、335、3030、3020 LED as lighting sources.

2. Flexible PCB, can be bent to any shape.

3. Working voltage: DC12V/24V, low voltage for human safety.

4. Cuttable length: by every 3LEDs or 6LEDs

5. Waterproof level IP20, IP54, IP67, IP68 for option

6. Energy saving and environmental friendly,

7. Working temperature and Storage temperature: -20℃ - 60℃.

8. Environment humidity:40-70% RH

9. Easy Installation: With 3M double-sided adhesive on the back, ultra-thin design

10. Working Lifetime (Hour): 50000

11. Packing: 5meters per reel were packed in an anti-static PVC bag.


Speicification:

                                                  SMD3528 LED Flexible Strip Series

Part No.

LED Qty/M (pcs)

Voltage

Power/M

FPC Width (mm)

Luminous flux/LED

Wavelength/ color temperature

FS3528Q30

30

DC12/24V

2.4W

8

R: 1~3lm

Y: 1~3lm

B: 2~4lm

G: 2~4lm

W: 6~7lm

WW: 6~7lm



R: 620~630nm

Y: 580~590nm

B: 465~470nm

G: 520~525nm

W: 4000~10000K

WW: 2100~3200K

FS3528Q48

48

DC12V

3.8W

8

FS3528Q60

60

DC12/24V

4.8W

5/8/10

FS3528Q96

96

DC12/24V

7.6W

8

FS3528Q120

120

DC12/24V

9.6W

5/8/10

FS3528Q180

180

DC24V

14.4W

10

FS3528Q240

240

DC12/24V

19.2W

10/15

FS3528Q360

360

DC12/24V

28.8W

20

FS3528Q480

480

DC24V

38.4W

28


1.  Please make sure LED drivers compatible with flexible LED strips light before use LED strips;

2.  To use LED strips no exceed 5meters in serial, longer than 5meters in parallel;

3.  Before use, first check the power supply used in compliance with of the power requirements;

4.  Each roll LED strips ask for independent power supply; not to use of multi-volume series use;

5.  Installation surface must be smooth, clean and dry.

1. Decorative lighting for exhibition shelves, advertising light box and hotel etc;

2. Backlight for edge lighting/signage;

3. Holiday decorative lights, residential and outdoor lighting;

4. Bridge, garden, road and car lighting etc;

5. Long-distance project but with inconvenient wiring;
